4-Zone Basement Water Leak Alarm Review: DIN-Rail Monitoring for Server Rooms and Critical Spaces

Water leak detection becomes more demanding when the area being protected contains expensive equipment, electrical systems, networking hardware, or other assets that cannot tolerate moisture. A simple battery alarm on the floor may be sufficient under a kitchen sink, but server rooms, mechanical rooms, basements, telecom closets, and commercial facilities often need something more structured.

This 4-zone water leak alarm controller is designed for that type of installation. It can monitor up to four independent sensing zones, provide visual status through LED indicators, and expose dedicated relay outputs for integration with broader alarm, building-management, or shutdown systems.

Its DIN-rail form factor also places it closer to industrial and facility-monitoring equipment than to ordinary consumer smart-home leak sensors. That makes it potentially useful for commercial environments, but it also means installation is more technical and depends on appropriate wiring, sensors, power, and downstream control logic.

This guide explains how a multi-zone water detection controller works, where it makes sense, what its relay outputs can be used for, and what to consider before incorporating one into a basement, server room, or critical-infrastructure leak detection system.

What Is a 4-Zone Water Leak Alarm Controller?

This device is a wired multi-zone water leak monitoring controller designed to supervise up to four independent sensor circuits.

Instead of placing one self-contained alarm at every risk point, multiple remote sensors can be wired back to a centralized controller.

Each zone can represent a different location.

For example:

• Zone 1: Server rack area
• Zone 2: HVAC condensate line
• Zone 3: Water heater
• Zone 4: Utility sink

If water is detected in one zone, the controller can identify that circuit independently rather than treating the building as one undifferentiated alarm area.

That makes troubleshooting and response much faster.

Why Zone-Based Water Monitoring Matters

In a small room, knowing that "water is present somewhere" may be enough.

In a larger basement, server room, plant room, or commercial installation, that information is incomplete.

A four-zone system divides the monitored environment into logical sections.

If Zone 3 activates, the maintenance team immediately knows which area to inspect.

This becomes especially valuable when sensor wiring extends beneath raised floors, through equipment racks, around mechanical systems, or into adjoining rooms.

Zone monitoring also makes it easier to connect different response actions to different locations when used with external relays or automation equipment.

Designed for Basements and Water-Sensitive Environments

Basements are obvious candidates for leak detection because they often contain plumbing, sump pumps, water heaters, HVAC equipment, utility sinks, and storage.

They are also commonly below grade, making them vulnerable to both plumbing leaks and water intrusion.

A centralized wired controller can monitor several of these risk points without requiring a separate network-connected sensor at every location.

The same approach applies to other water-sensitive environments such as:

• Server rooms
• Data closets
• Network equipment rooms
• Mechanical rooms
• Electrical rooms
• Telecom facilities
• Commercial kitchens
• Laboratories
• Utility spaces
• Building plant rooms

These locations often benefit from deterministic wired monitoring rather than consumer-oriented app notifications alone.

Why Server Rooms Need More Than a Basic Water Alarm

A server room may contain networking switches, power distribution units, storage systems, UPS equipment, racks, cabling, and other electronics.

Even a relatively small amount of water can become a serious operational problem if it reaches the wrong location.

A simple audible floor alarm has two weaknesses.

First, someone must be nearby to hear it.

Second, it may not integrate with the building's existing alarm or monitoring infrastructure.

A multi-zone controller with relay outputs can solve both problems by identifying the affected area and signaling another system.

That may include a building management system, remote annunciator, security panel, automation controller, or shutoff system.

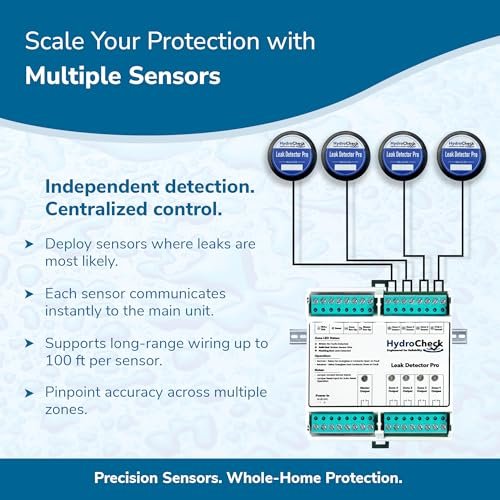

Four Independent Monitoring Zones

The defining feature is support for up to four separately monitored zones.

Each zone is connected to its own sensor circuit.

That allows one controller to monitor multiple areas without losing location information.

For example, a small server facility might configure the zones as:

Zone 1: Under the main server racks
Zone 2: Beneath HVAC or cooling equipment
Zone 3: Near the building water supply
Zone 4: Around the sump or drainage system

If only Zone 2 alarms, staff know that the cooling area should be inspected first.

What Counts as a Zone?

A zone is not necessarily one single sensor.

Depending on the supported sensor configuration and wiring design, a zone may supervise a specific detector, sensing cable, probe assembly, or defined monitoring area.

The important point is that the controller treats that entire circuit as one logical location.

Before designing the system, determine how many physically distinct areas need separate identification.

If five or six areas must be distinguished independently, a four-zone controller may not be sufficient without additional hardware.

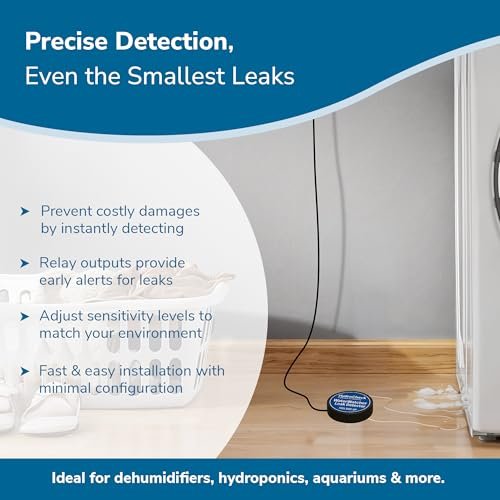

Early Water Leak Detection

The product is designed around precision sensor monitoring intended to identify water before a larger flooding event develops.

Early detection is particularly valuable in environments where small leaks can remain hidden.

For instance, condensate may begin dripping beneath an HVAC unit before becoming visible in the room.

A pipe connection may leak beneath a raised floor.

A sump pump may overflow behind equipment.

A sensor positioned at the likely collection point can provide warning while the problem is still localized.

LED Status Indicators

The controller includes bright LED indicators for local visual status.

This provides immediate information to anyone standing in front of the panel.

Visual indicators are useful because a wired monitoring system may be installed inside a control cabinet or equipment room where staff need to identify alarm status quickly.

Rather than tracing wires or testing circuits, the active zone can be recognized at the controller.

LED indication also helps during commissioning and maintenance because technicians can verify that each sensor circuit is responding correctly.

Relay Outputs for External Integration

One of the most important features is the availability of dedicated relay outputs.

A relay allows the leak detector to communicate with other electrical or control equipment.

Instead of merely lighting an LED, the controller can change the state of a relay contact when water is detected.

That contact can then be monitored by another system.

Possible integrations may include:

• Building management systems
• Security panels
• PLCs
• Remote alarm panels
• Automatic shutoff valves
• Pumps
• Sirens
• Strobe lights
• Remote dialers
• Industrial automation controllers

The exact connection depends on the relay specifications and the external equipment being controlled.

Why Dry-Contact Style Integration Is Useful

In industrial and commercial systems, simple relay contacts are often preferred because they are broadly compatible.

The leak controller does not necessarily need to understand the protocol used by a building management system.

It only needs to signal an alarm state.

The BMS can interpret the contact closure and then perform whatever action has been programmed.

This keeps the leak detector relatively independent of software platforms, wireless ecosystems, and proprietary apps.

Relay Outputs Can Support Automatic Response

Depending on the connected equipment, a relay output may be used to trigger more than an alarm.

For example, it could potentially initiate a compatible water shutoff valve when a specific zone detects moisture.

It might also activate a pump or notify a supervisory controller.

However, automatic actions should be engineered carefully.

Closing a water valve or shutting down equipment may have operational consequences.

Any automated response should therefore account for failure modes, relay ratings, local regulations, and the behavior of the system during power loss.

Configurable Normal and Reverse Operation

The controller supports configurable normal/reverse operation according to the supplied specifications.

This type of option is useful when integrating equipment with different expected electrical states.

Some systems treat a closed contact as normal and an open contact as alarm.

Others use the opposite logic.

Being able to reverse the operating behavior allows the leak controller to adapt to the input requirements of other equipment.

This is particularly useful when replacing an existing monitoring device without redesigning the entire alarm circuit.

Manual and Automatic Reset Options

Another useful feature is support for both manual and automatic reset behavior.

This determines what happens after the leak condition disappears.

Automatic Reset

In automatic-reset mode, the alarm can return to normal once the sensor no longer detects water.

This can be convenient for applications where temporary moisture conditions are expected and operators do not need to acknowledge every event manually.

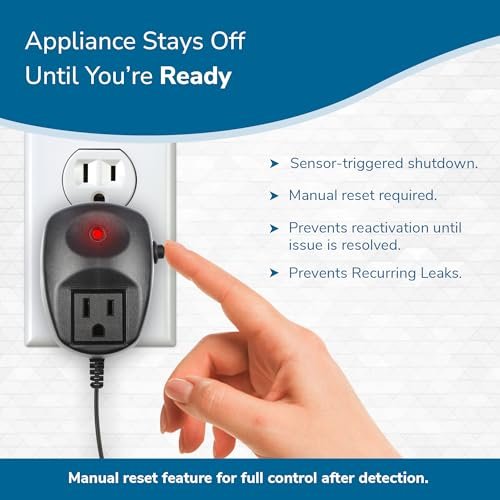

Manual Reset

In manual-reset mode, the alarm remains latched until someone clears it.

For critical environments, this is often preferable.

A leak that appears and then dries should not necessarily disappear from attention without investigation.

A latched alarm forces staff to acknowledge the event.

Why Manual Reset Can Be Better in Critical Spaces

Imagine a condensate line leaks overnight but dries before staff arrive.

With automatic reset, the controller may appear normal by morning.

With manual latching, the event remains visible until someone investigates.

In data centers, electrical rooms, or commercial buildings, that historical awareness can be valuable.

The best reset behavior depends on operational priorities.

Manual Fault Clearing

The product also includes a manual setting for fault clearing.

This can help technicians differentiate between an actual leak event and a circuit problem.

Wired detection systems should ideally make it possible to recognize open circuits, disconnected sensors, or other wiring faults rather than silently interpreting them as normal.

The exact fault behavior should be verified from the controller's installation documentation before commissioning.

DIN-Rail Mounting

The controller is designed for DIN-rail installation.

DIN rail is commonly used inside electrical enclosures, industrial control cabinets, automation panels, and equipment racks.

This makes the device easy to integrate alongside breakers, relays, power supplies, terminals, PLC modules, and other control hardware.

For a professional installation, DIN rail offers several advantages.

It keeps the controller securely mounted, makes wiring more organized, and allows components to be replaced without building custom brackets.

Why DIN Rail Is Better for Commercial Installations

A consumer leak detector is usually placed directly on the floor.

That is convenient but not ideal for a structured building-monitoring system.

A DIN-rail controller can be installed inside a protected enclosure while only the sensing elements are exposed to leak-prone areas.

This separates the control electronics from the hazard zone.

It also centralizes maintenance.

Technicians can inspect one panel instead of searching for individual smart sensors scattered around a building.

Wired Sensor Connections Up to 100 Feet

The supplied specifications state that sensors can be connected using approximately 12/24-gauge two-conductor cable over distances of up to 100 feet.

That allows remote sensor placement without locating the controller directly beside the leak risk.

For example, the controller could be mounted inside a mechanical-room panel while a sensor is positioned dozens of feet away beneath a server rack.

This is particularly useful in larger commercial spaces.

Actual supported wiring distance and conductor size should be confirmed against the manufacturer's installation instructions because resistance and sensor type can affect circuit behavior.

Why Wired Leak Detection Can Be More Reliable

Wireless sensors are convenient, but they depend on battery status, radio communication, gateways, and sometimes cloud connectivity.

A wired sensor circuit eliminates many of those dependencies.

Once properly installed, the detector communicates directly through physical conductors.

This can make wired systems attractive for mission-critical or permanent installations.

The tradeoff is installation effort.

Running cable through walls, ceilings, conduit, or equipment spaces requires more planning than dropping a battery-powered sensor under a sink.

Choosing the Right Wire

The product refers to two-conductor wiring such as speaker-style cable.

The exact gauge should be chosen based on run length, electrical requirements, installation environment, and local code.

For commercial buildings, ordinary consumer speaker wire may not always be appropriate for concealed, plenum, fire-rated, or regulated spaces.

Cable selection should comply with applicable building and electrical requirements.

Where uncertainty exists, use cable specifically rated for the installation environment.

Separate Wiring Is Required

The sensor wiring is sold separately according to the source information.

That should be included when budgeting the installation.

For a four-zone system with long cable runs, wiring, conduit, terminal blocks, sensor probes, and enclosure hardware may represent a meaningful part of the total installation cost.

A commercial system should be planned as a complete monitoring project rather than evaluating the controller alone.

High-Current Load Handling

The product is described as supporting high-amp load handling and long-term operation.

This is most relevant to the relay outputs.

However, relay contacts always have specific voltage and current limits.

Those ratings should never be exceeded.

A small monitoring relay should not be assumed capable of directly powering a large pump, motorized valve, or other heavy load.

Where higher current is required, the leak controller relay can instead drive an appropriately rated intermediary contactor or control relay.

Expected Service Life

The source claims a service life of at least five years for the high-load handling components.

That should be treated as a manufacturer specification rather than a guarantee.

Relay life depends heavily on the connected electrical load, switching frequency, environment, and contact arcing.

A relay switching a low-voltage alarm input may last much longer than one directly switching a heavy inductive load.

System design matters as much as component rating.

Integrating With a Building Management System

A building management system, or BMS, can use the controller's relay outputs as digital alarm inputs.

Each zone may potentially be mapped separately depending on the controller's available outputs and integration design.

The BMS can then log the event, trigger notifications, or initiate programmed responses.

This approach is often more useful in commercial facilities than relying on a standalone audible alarm.

It provides centralized supervision alongside HVAC, power, access control, and other building systems.

Using the Controller With an Alarm Panel

The same principle applies to security or alarm systems.

A relay contact can be connected to a compatible zone input on the alarm panel.

When water is detected, the security system can treat it as a technical alarm.

This can provide remote monitoring through an existing professional alarm service if supported.

Always verify input type, voltage, resistance requirements, and whether end-of-line supervision is necessary.

Integration With Automatic Water Shutoff

The controller may also be able to participate in an automatic shutoff system.

For instance, a leak relay could signal a separate valve controller.

If Zone 1 detects water beneath a supply manifold, the external control logic could close a water valve.

This should be designed carefully to avoid inappropriate shutdowns.

Critical facilities may require manual confirmation before isolating water, while residential or unattended spaces may benefit from immediate closure.

Sensor Placement in a Basement

For a basement, divide the area according to actual risk rather than equal physical sections.

A practical four-zone arrangement might be:

Zone 1: Sump pump and drainage system
Zone 2: Water heater and boiler area
Zone 3: Laundry appliances
Zone 4: Foundation or utility wall prone to water intrusion

This produces more meaningful alerts than dividing the floor into arbitrary quadrants.

Server Room Placement Strategy

In a server room, sensors should be placed according to water sources and equipment vulnerability.

Potential zones include:

Cooling equipment: HVAC condensate pans and pipes
Raised floor: water beneath racks
Overhead plumbing: likely drip locations
Room perimeter: water entering from adjacent areas

Sensor cables or probes should be positioned so that water is detected before it reaches energized equipment whenever possible.

Water Heater Monitoring

Water heaters can leak from fittings, drain valves, pressure-relief components, or the tank.

A probe or sensing cable should be placed where water would first collect.

If the heater sits in a drain pan, the sensor may be installed in the pan.

Where no pan exists, floor slope should be considered.

The leak controller cannot detect water that flows away from the probe.

Sump Pump Monitoring

A sump pump failure can create rapidly rising water.

A sensor can be positioned slightly above the normal water level or in the surrounding area where overflow would first appear.

Care should be taken to distinguish actual overflow from routine moisture around the pump system.

False alarms become more likely if probes are exposed to normal splashing.

Common Installation Mistakes

One common mistake is grouping too many unrelated areas into one zone.

That reduces the value of zone identification.

Another is running sensor cable without considering electrical-noise sources, physical damage, or building-code requirements.

Using relay outputs beyond their rated current is another serious error.

A controller relay intended for signal-level loads should not be used as a substitute for a properly rated motor contactor.

Finally, installers should not assume that correct LED operation proves the entire external alarm chain works.

Every connected relay, panel input, and automation should be tested end to end.

Commissioning the System Properly

After installation, each zone should be tested individually.

Apply water to the corresponding sensor according to the manufacturer's procedure.

Confirm that:

• The correct zone LED changes state
• The corresponding relay operates
• Any external alarm panel receives the signal
• Connected automation behaves correctly
• The configured reset mode works
• Fault clearing operates as expected

Testing zones one at a time also helps identify wiring mistakes before the system is put into service.

Document Every Zone

Professional installations should be labeled clearly.

The controller should indicate what each zone monitors.

For example:

Z1 – Server Room North Rack

Z2 – CRAC Condensate Drain

Z3 – Water Heater

Z4 – Sump Pump

The same labels should be used in BMS software, drawings, maintenance documentation, and alarm panels.

Consistent naming makes emergency response faster.

Periodic Maintenance

Wired systems are generally low maintenance, but they are not maintenance-free.

Sensor probes can become dirty or corroded.

Wiring can be damaged during construction or equipment movement.

Relay contacts can degrade.

Terminal screws may loosen over long periods.

Periodic inspection and functional testing help ensure the system still responds correctly.

The exact maintenance schedule should follow the manufacturer's recommendations and the facility's risk level.

Wired Multi-Zone Controller vs. Smart WiFi Leak Sensors

WiFi leak sensors are easier to deploy.

They work well in homes where the main requirement is a smartphone notification.

A wired multi-zone controller is better suited to permanent installations requiring relay outputs, centralized monitoring, predictable wiring, or integration with industrial systems.

WiFi sensors prioritize convenience.

A DIN-rail controller prioritizes system integration.

The better choice depends entirely on the application.

Wired Controller vs. Zigbee or LoRa Sensors

Zigbee and LoRa sensors offer good battery life and can provide broad wireless coverage.

They are useful when running cable is difficult.

A wired controller avoids batteries and radio links entirely at the sensing circuit.

This can be appealing in server rooms and critical facilities where deterministic communication is preferred.

Wireless systems can still be reliable, but they add additional layers such as gateways and radio coverage.

Point Sensors vs. Rope Leak Detection

A point probe monitors one small location.

A rope or sensing cable monitors a larger path.

If the water source is highly predictable, a point sensor may be sufficient.

If water could emerge from several locations beneath a row of equipment, cable detection may provide better coverage.

The controller's usefulness therefore also depends on the type of sensor connected to each zone.

Advantages of This 4-Zone Water Leak Alarm

The biggest advantage is centralized monitoring of multiple independent locations.

Four zones allow users to identify where water has been detected instead of receiving a generic alarm.

DIN-rail mounting makes the controller easy to integrate into professional control panels.

Dedicated relay outputs allow connection to building systems, alarms, automation equipment, and potentially shutoff controls.

Configurable operating logic and manual or automatic reset provide additional integration flexibility.

Long wired sensor runs make the system suitable for larger spaces.

Potential Drawbacks

This is not a plug-and-play consumer leak alarm.

It requires wiring, sensors, a suitable power arrangement, and potentially an enclosure.

Installation is more involved than placing wireless battery sensors around a home.

Remote smartphone notifications are not inherently part of the controller unless another connected system provides them.

Cable must be purchased separately.

Relay load limits must also be respected carefully.

For a single household sink, this system would generally be unnecessarily complex.

Who Should Consider This Type of Leak Detector?

A four-zone wired controller makes the most sense where water detection is part of a broader monitoring system.

Good use cases include:

• Server rooms
• Data closets
• Commercial basements
• Mechanical rooms
• Industrial facilities
• Equipment rooms
• Laboratories
• Telecommunications spaces
• Building management installations
• Properties with several nearby leak-risk zones

For ordinary residential use, it may still be suitable for technically inclined homeowners who want a hardwired solution, but simpler products are available.

Frequently Asked Questions

How many zones can this leak alarm monitor?

It is designed to monitor up to four independent water-detection zones.

What is a zone?

A zone is an independently monitored sensor circuit corresponding to a specific location or group of sensing elements.

Is this suitable for a server room?

Yes. Its multi-zone capability, relay outputs, and wired design make it particularly relevant to server rooms and other water-sensitive technical spaces.

Does it connect to WiFi?

The supplied description focuses on wired zone monitoring and relay outputs rather than integrated WiFi.

Remote connectivity would generally require connection to another compatible monitoring system.

Does it send smartphone notifications?

Not directly based on the supplied product information.

A connected BMS, alarm system, or other automation platform could potentially provide remote notifications using the relay outputs.

How is the controller mounted?

It uses DIN-rail mounting, making it suitable for electrical and control enclosures.

How far away can sensors be installed?

The product information states that sensors can be connected over distances of up to approximately 100 feet using suitable two-conductor wiring.

Is wiring included?

No. The source states that the wiring is sold separately.

What type of wire is used?

The product refers to two-conductor cable in approximately the 12- to 24-gauge range.

The actual cable should be selected according to manufacturer requirements and local installation codes.

Can it connect to a building management system?

Potentially, yes. The relay outputs are suitable for integration with compatible external monitoring inputs.

Can it trigger an automatic shutoff valve?

Potentially, if the relay output is correctly integrated with a compatible valve controller or intermediary relay.

The electrical ratings and control logic must be verified.

Does the alarm reset automatically?

It supports configurable manual or automatic reset behavior according to the supplied specifications.

What does reverse operation mean?

It allows the operating logic to be inverted so the controller can better match the input expectations of connected equipment.

Can it detect wiring faults?

The source mentions manual fault clearing, suggesting fault-state handling is part of the design. Exact supervision behavior should be verified in the installation manual.

Is it suitable for DIY installation?

Technically capable homeowners may be able to install it, but this is more specialized than a consumer water alarm.

Commercial, electrical, or critical-system installations may be better handled by a qualified technician.

Final Verdict

This 4-zone water leak alarm controller is a fundamentally different product from the small battery-powered leak sensors commonly used in smart homes.

Its strength lies in structured, wired monitoring.

It can supervise four independent areas, identify which zone has detected water, provide clear LED indication, and use relay outputs to communicate with building management systems, alarm panels, automation controllers, or other response equipment.

DIN-rail mounting and support for long wired sensor runs make it especially appropriate for server rooms, basements, utility spaces, mechanical rooms, and other water-sensitive commercial environments.

Its configurable reset and operating modes also give integrators more control over how alarms are handled.

The main limitation is complexity. This is not a self-contained app-connected device that can simply be placed on the floor. It requires planning, wiring, compatible sensors, proper relay integration, and commissioning.

For a homeowner who only wants to know whether a washing machine is leaking, a simple smart sensor is easier. For a facility that needs centralized, multi-zone water detection with wired reliability and system-level integration, however, this type of DIN-rail controller is the more appropriate tool.
