1/4-Inch Male NPT to 1/4-Inch Female NPT Stainless Steel Adapter: High-Pressure Pipe Fitting for Industrial Use

A threaded pipe adapter may look like a simple component, but in industrial, pneumatic, hydraulic, and process applications, material quality, thread type, pressure rating, and temperature tolerance can make a major difference in system reliability.

This 1/4-inch male NPT to 1/4-inch female NPT stainless steel adapter is designed to connect compatible threaded pipes, valves, gauges, hoses, and fittings while maintaining a compact inline connection. Made from forged 304 stainless steel, it is intended for demanding environments where corrosion resistance and mechanical strength are important.

The fitting is also supplied with a protective case and is rated by the manufacturer for working pressures up to 2,800 PSI and a very broad stated temperature range. Those specifications make it potentially suitable for a wide variety of industrial applications, although the complete system must always be evaluated rather than relying on the fitting's rating alone.

What Is a 1/4-Inch Male NPT to Female NPT Adapter?

This fitting has two threaded ends:

A 1/4-inch male NPT connection
A 1/4-inch female NPT connection

The male end screws into a compatible female threaded port, while the female side accepts a compatible male NPT fitting.

Because both sides use the same nominal pipe size, this adapter is not primarily used to reduce or enlarge a line. Instead, it can function as an extension, interface, or intermediary connection between compatible components.

Possible applications include connecting:

Valves
Pressure gauges
Regulators
Pumps
Manifolds
Pneumatic equipment
Hydraulic components
Instrumentation
Industrial pipe assemblies

Understanding 1/4-Inch NPT Threads

NPT stands for National Pipe Taper.

Unlike straight machine threads, NPT threads taper slightly along their length. As the male and female parts are tightened together, the tapered surfaces wedge against one another.

This helps create a pressure-resistant mechanical joint.

However, NPT connections generally require a compatible thread sealant because the threads themselves may not create a completely leak-free seal.

Common sealing methods include:

PTFE thread tape
Pipe-thread sealant
Application-specific thread compounds

Always use a sealant compatible with the fluid, gas, temperature, and pressure involved.

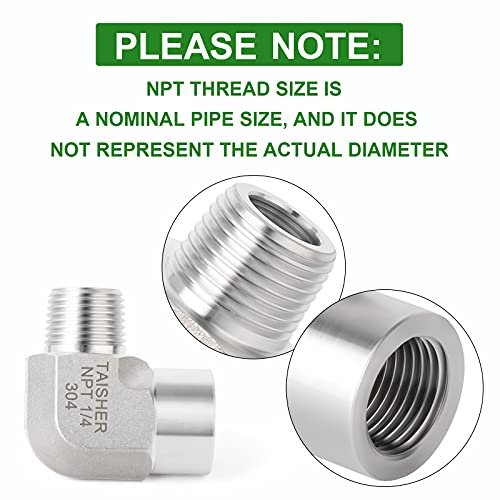

Why 1/4-Inch NPT Does Not Measure 1/4 Inch

One of the most common sources of confusion with pipe fittings is nominal sizing.

A 1/4-inch NPT fitting does not have an actual thread diameter of exactly 1/4 inch.

The 1/4-inch designation refers to nominal pipe size rather than the physical outside diameter of the threaded section.

This is normal for NPT plumbing standards.

Before ordering, identify fittings by their thread specification rather than measuring the outside diameter and assuming that measurement equals the nominal size.

Forged 304 Stainless Steel Construction

The adapter is made from 304 stainless steel using a forging process.

304 stainless is widely used in industrial and plumbing-related applications because it offers a useful combination of:

Corrosion resistance
Strength
Temperature tolerance
Durability
Resistance to oxidation in many environments

It is commonly found in food-processing equipment, industrial piping, machinery, water systems, and general-purpose process equipment.

However, 304 stainless is not universally resistant to every chemical or environment. Chlorides, strong acids, and certain high-temperature chemical processes may require a different stainless grade or specialty alloy.

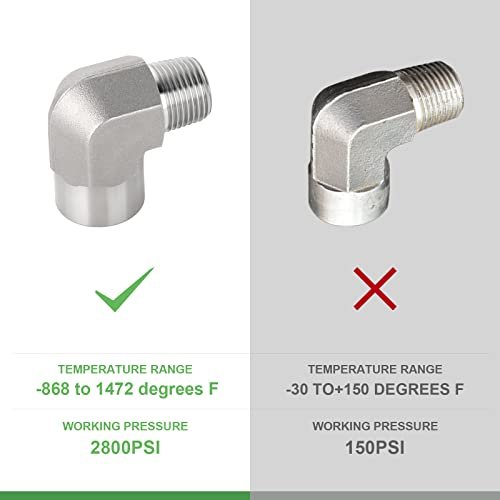

Forged vs. Cast Stainless Steel Fittings

The product emphasizes forged construction rather than casting.

These manufacturing methods produce fittings differently.

Forged Fittings

Forging shapes metal under significant pressure.

This tends to create a dense material structure and can improve mechanical strength compared with poorly controlled casting.

Cast Fittings

Casting involves pouring molten metal into a mold.

Casting is useful for producing complex shapes, but internal porosity and material consistency can vary depending on manufacturing quality.

For high-pressure applications, forged fittings are often preferred because of their robust mechanical properties.

That said, the actual performance of any fitting depends on design, manufacturing quality, inspection, and rating—not simply whether it was forged or cast.

High-Pressure Rating Up to 2,800 PSI

The fitting is described as having a maximum working pressure of 2,800 PSI.

That is significantly higher than typical household plumbing pressures and places the fitting more in the category of industrial, pneumatic, hydraulic, and process-system hardware.

However, this figure should not automatically be treated as the allowable working pressure of an assembled system.

The maximum safe system pressure is determined by the lowest-rated component.

That includes:

Pipe
Tubing
Hoses
Valves
Gauges
Adapters
Thread sealants
Connectors
Equipment ports

If one component is rated for only 500 PSI, the system should not be operated at 2,800 PSI simply because the adapter can tolerate more.

Pressure ratings are often specified under particular temperature conditions.

As temperature rises, the allowable working pressure of metal fittings and connected components may decrease.

Therefore, the stated 2,800 PSI rating and maximum temperature should not necessarily be assumed to apply simultaneously.

For demanding applications, consult the manufacturer's pressure-temperature data rather than combining maximum values independently.

Wide Stated Temperature Range

The product information lists an operating temperature range of approximately:

-80°F to 1472°F (-62°C to 800°C)

This is an exceptionally broad range.

304 stainless steel itself can tolerate very high temperatures in certain circumstances, but practical fitting performance also depends on:

Thread sealant
Connected materials
Pressure
Thermal cycling
Oxidation
Fluid chemistry

A PTFE sealant, elastomer, hose, or adjoining valve may have a far narrower temperature limit than the stainless fitting.

For extreme-temperature service, every component in the connection must be evaluated.

Corrosion Resistance

Stainless steel is often selected when ordinary carbon steel would corrode too quickly.

Potentially suitable environments may include:

Moist industrial areas
Outdoor installations
Water-processing equipment
Compressed-air systems
Certain chemical-processing applications

The passive chromium-rich layer on stainless steel helps protect the underlying metal from corrosion.

Still, the term "stainless" does not mean "corrosion-proof."

Exposure to chloride-rich fluids, aggressive chemicals, or certain marine environments can cause pitting or stress-corrosion problems.

Industrial Pipe and Fitting Connections

This adapter may be useful anywhere two compatible 1/4-inch NPT components need to be joined.

Typical examples could include installing a gauge farther away from a valve body or adding a short extension between a regulator and manifold.

Its compact design is particularly useful when a system requires threaded adaptation without changing nominal pipe size.

Pneumatic Applications

Compressed-air systems commonly use 1/4-inch NPT fittings.

Potential pneumatic uses include:

Air compressors
Regulators
Filters
Lubricators
Manifolds
Pressure gauges
Pneumatic tools

Before use, verify that the pressure rating and thread materials are appropriate for the system.

Compressed gas stores significant energy, so high-pressure fittings should always be installed carefully.

Hydraulic Applications

Hydraulic systems can operate at much higher pressures than typical air or water systems.

A 2,800 PSI-rated fitting may be suitable for some hydraulic applications if all compatibility requirements are met.

However, hydraulic fluid chemistry, pressure surges, vibration, temperature, and fitting standards all matter.

A general-purpose NPT fitting should not automatically replace a fitting specified by the equipment manufacturer.

Gauge and Instrumentation Connections

One common use for small NPT adapters is instrumentation.

They may be used to connect:

Pressure gauges
Pressure switches
Sensors
Regulators
Test equipment

A male-to-female adapter can provide additional clearance or move the instrument away from a crowded manifold.

When installing gauges, avoid using the instrument body itself as a wrench.

Use the wrench flats on the fitting or gauge connection where provided.

Protective Case

The product includes a protective case.

Although simple, this can help protect the threads during storage or transport.

Damaged NPT threads can cause:

Cross-threading
Leaks
Poor engagement
Reduced mechanical integrity

Keep threaded fittings clean and protected until installation.

How to Install an NPT Adapter Correctly

1. Verify Thread Compatibility

Confirm that both components use 1/4-inch NPT.

Do not force NPT into BSP, metric, straight-thread, or other incompatible connections.

2. Inspect the Threads

Look for burrs, dents, contamination, or damaged thread crests.

3. Clean the Connection

Remove oil, dirt, old tape, and debris.

4. Apply Suitable Thread Sealant

Use PTFE tape or another approved sealant compatible with the application.

5. Start the Connection by Hand

Threading by hand initially reduces the risk of cross-threading.

6. Tighten with the Proper Wrench

Use the fitting's wrench flats rather than gripping random surfaces.

7. Avoid Overtightening

NPT becomes tighter as engagement increases. Excessive force can crack a female fitting or permanently damage threads.

8. Pressure-Test the Connection

Bring the system up to pressure gradually and inspect for leakage.

How to Apply PTFE Tape

If PTFE tape is appropriate for the application, wrap it in the same direction the fitting will rotate during installation.

This prevents the tape from unraveling as the connection is tightened.

Avoid covering the first thread excessively, because loose tape fragments can enter the system.

For oxygen service, high-temperature systems, or certain chemicals, ordinary PTFE tape may not be appropriate. Use only approved sealing materials.

NPT vs. NPS Threads

NPT and NPS may look similar, but they are different.

NPT threads are tapered.

NPS threads are straight.

A straight-thread connection does not seal in the same manner as tapered NPT.

Always confirm the thread specification instead of relying on appearance.

NPT vs. BSP Threads

BSP is another common pipe-thread family used internationally.

BSP and NPT threads differ in:

Thread angle
Pitch
Geometry

Some sizes may appear close enough to start threading together, but they are not necessarily compatible.

Forcing BSP and NPT fittings together can damage both components and create an unreliable connection.

Common Installation Mistakes

Assuming Nominal Size Equals Actual Diameter

NPT sizes are nominal.

Mixing Thread Standards

Verify NPT, BSP, metric, or straight-thread specifications.

Skipping Thread Sealant

Many NPT connections require sealant to prevent leakage.

Overtightening

Excessive torque can damage threads or split female fittings.

Ignoring System Pressure

The adapter's rating does not override lower-rated components.

Combining Maximum Pressure and Maximum Temperature

Pressure capability may decrease at elevated temperature.

When Stainless Steel Is Preferable to Brass

Both stainless steel and brass are common fitting materials.

Stainless may be preferable when:

Higher strength is needed
Corrosion resistance is important
Higher temperatures are involved
Stainless system compatibility is desired

Brass may be easier to machine and more economical for many standard plumbing and pneumatic applications.

The correct material depends on the fluid, environment, pressure, and regulatory requirements.

304 vs. 316 Stainless Steel

304 stainless is a common general-purpose grade.

316 stainless contains molybdenum, which typically provides improved resistance to chloride-related corrosion.

For marine, saltwater, or chloride-intensive environments, 316 may be preferable.

For many general industrial applications, 304 provides a practical balance of performance and cost.

Advantages and Considerations

Advantages

1/4-inch male NPT to 1/4-inch female NPT configuration
Forged 304 stainless steel
Strong corrosion resistance in many environments
Manufacturer-stated pressure rating up to 2,800 PSI
Broad stated temperature range
Suitable for industrial connection and adaptation
Compact inline design
Protective case included
Useful with compatible pneumatic, hydraulic, and instrumentation systems

Potential Considerations

The nominal 1/4-inch size does not represent the actual thread diameter.

The 2,800 PSI rating should not be applied to a complete system unless every component supports that pressure.

The very high stated temperature limit must be evaluated together with pressure, sealant, and connected-component ratings.

304 stainless may not be the best choice for highly corrosive chloride environments.

Frequently Asked Questions

What does 1/4-inch NPT mean?

It refers to a nominal tapered pipe-thread size. The actual outside thread diameter is larger than 1/4 inch.

What are the connections on this adapter?

It has one 1/4-inch male NPT end and one 1/4-inch female NPT end.

What material is it made from?

The product is described as forged 304 stainless steel.

What is the maximum working pressure?

The manufacturer lists a maximum working pressure of 2,800 PSI.

What is the stated temperature range?

Approximately -80°F to 1472°F (-62°C to 800°C).

Can it be used in pneumatic systems?

Potentially, yes, provided all components and pressure ratings are compatible.

Can it be used hydraulically?

Possibly, but verify system pressure, fluid compatibility, equipment requirements, and fitting standards before use.

Does NPT need thread sealant?

Most NPT connections use a compatible thread sealant to prevent leakage.

Can NPT connect directly to BSP?

Not reliably. They use different thread standards and should not be forced together.

Is forged stainless better than cast stainless?

Forging generally produces dense, strong components and is often preferred for demanding pressure applications, although final quality depends on manufacturing and design.

Final Thoughts

A 1/4-inch male NPT to 1/4-inch female NPT forged 304 stainless steel adapter is a simple but useful component for industrial, pneumatic, hydraulic, and instrumentation systems where strength, corrosion resistance, and threaded compatibility matter.

Its forged stainless construction and manufacturer-stated 2,800 PSI working pressure make it considerably more robust than a typical light-duty plumbing adapter. The compact male-to-female configuration also makes it useful as an extension or connection point between compatible components without changing the nominal pipe size.

The key is to treat the fitting as part of a complete system rather than in isolation. Confirm thread standards, use the correct sealant, respect the lowest pressure and temperature ratings in the assembly, and verify chemical compatibility before installation.

When those conditions are met, this type of forged stainless NPT adapter can provide a durable and compact solution for connecting high-pressure or demanding threaded systems.
