4-Zone Sprinkler Timer Review: Independent Programs, Rain Delay, Brass Inlet and Sequential Watering Control

Managing four different watering areas from one outdoor faucet can become tedious very quickly. A lawn, vegetable garden, greenhouse, and flower bed may all need different irrigation schedules, yet manually moving hoses or adjusting valves every day defeats the purpose of automation.

This 4-zone programmable sprinkler timer is designed to solve that problem by giving each outlet its own start time, watering duration, and frequency. It also includes manual watering, 24-, 48-, and 72-hour rain delay, a large 3.3-inch LCD display, a brass inlet, low-battery protection, and automatic valve shutoff when battery power becomes too low.

One important design detail separates it from some other multi-zone timers: only one zone operates at a time. That means it functions as a sequential four-zone controller rather than trying to feed several irrigation lines simultaneously. In many homes, that is actually beneficial because all four zones share the same faucet and available water pressure.

For homeowners who want to automate several hose-fed irrigation areas without installing a permanent underground sprinkler controller, this type of four-outlet timer offers substantial flexibility in a relatively simple package.

What Is a 4-Zone Sprinkler Timer?

A four-zone sprinkler timer attaches to a single outdoor faucet and divides the water supply into four independently controlled outlets.

Each outlet becomes a separate irrigation zone.

For example, you could configure the system as follows:

• Zone 1 for the front lawn
• Zone 2 for a vegetable garden
• Zone 3 for flower beds
• Zone 4 for a greenhouse or drip system

Each zone can use its own irrigation schedule rather than forcing every part of the yard to receive the same amount of water.

Why Four Independent Zones Are Useful

Plants have different moisture requirements.

Grass may benefit from longer, less frequent irrigation. Vegetables can require more regular watering during the growing season. Containers and greenhouse plants may dry more quickly, while established shrubs may need much less frequent irrigation.

A four-zone timer lets one faucet support all of those areas without treating them as a single watering system.

That can improve convenience while also making it easier to avoid unnecessary watering.

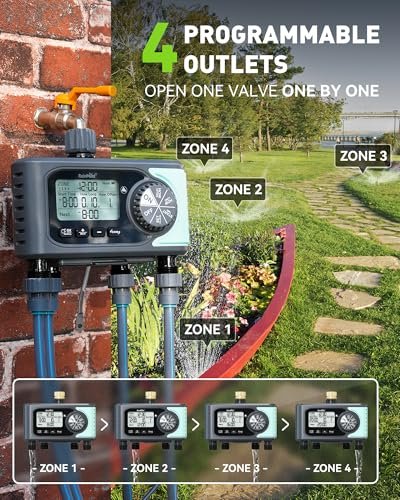

Independent Start Times for Every Zone

Each zone can have its own programmed start time.

This is particularly useful because the timer operates zones individually rather than all at once.

You might schedule:

• Lawn at 5:30 AM
• Vegetable bed at 6:15 AM
• Flower border at 7:00 AM
• Greenhouse at 7:30 AM

This sequential arrangement allows the full available water supply to serve each zone separately.

Why Sequential Watering Can Be Better

A standard outdoor faucet has limited flow.

If four sprinklers were opened simultaneously, water pressure could drop dramatically.

A lawn sprinkler that normally performs well might lose coverage, while drip systems could receive less flow than expected.

Allowing only one valve to open at a time reduces that problem.

For many residential irrigation systems, sequential operation is preferable to simultaneous watering.

Important Scheduling Limitation

The manufacturer specifically warns against programming overlapping zone schedules.

Because only one valve can operate at a time, schedules should be separated so one cycle finishes before the next begins.

If multiple channels are programmed to run during the same period, the system may not behave as expected.

This is one of the most important setup details to understand before using the timer.

Plan the Full Irrigation Window

When programming four zones, calculate how long the entire watering sequence will take.

For example:

• Zone 1: 40 minutes
• Zone 2: 30 minutes
• Zone 3: 20 minutes
• Zone 4: 30 minutes

The complete sequence requires two hours.

Start times should therefore be spaced accordingly.

Leaving a small buffer between programs can help prevent overlap.

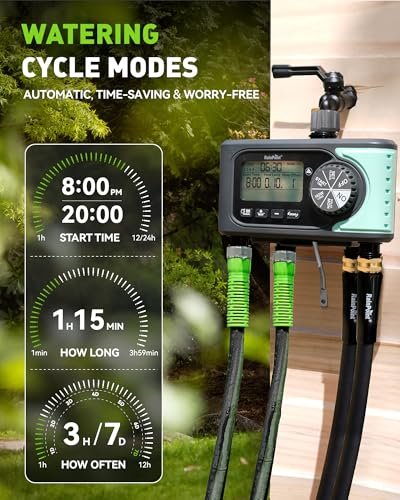

Watering Duration From 1 Minute to 3 Hours 59 Minutes

The automatic watering duration can reportedly be configured from 1 minute to 3 hours and 59 minutes per zone.

That range covers most residential irrigation systems.

Short runtimes are useful for:

• Containers
• Seedlings
• High-flow sprinklers
• Small beds

Longer sessions can suit:

• Drip irrigation
• Soaker hoses
• Slow-emitting systems
• Deep shrub watering

The correct duration depends on actual water output rather than the timer itself.

Do Not Use Runtime Alone to Judge Irrigation

Two zones running for 30 minutes may deliver completely different quantities of water.

A lawn sprinkler could use several gallons per minute, while a drip system may release water very slowly.

For better scheduling, consider the flow rate of each zone.

That helps determine whether a 20-minute or two-hour cycle actually makes sense.

Flexible Watering Frequency

The source states that irrigation frequency can be configured from every 1 to 12 hours or every 1 to 7 days.

That gives the timer substantial flexibility.

A greenhouse line could run more than once per day, while established landscaping could operate only every few days.

Each zone can be configured according to the plants it serves.

Hourly Scheduling

Hourly intervals are especially useful for applications where small amounts of water are needed frequently.

Examples include:

• Greenhouse seedlings
• Recently germinated grass
• Hanging baskets
• Small containers
• Very fast-draining growing media

For mature lawns and shrubs, frequent hourly irrigation is generally unnecessary and may encourage shallow root development.

Daily and Multi-Day Watering

The ability to run zones every two, three, or seven days is better suited to many established plants.

Deeper, less frequent watering can often help moisture penetrate farther into the root zone.

Soil type, weather, and plant species should guide the final program.

12-Hour or 24-Hour Time Format

The timer supports both 12-hour and 24-hour clock formats.

This is a small but useful convenience.

Users who prefer AM/PM formatting can use the 12-hour display, while others can choose a 24-hour clock to reduce scheduling ambiguity.

Rain Delay for 24, 48 or 72 Hours

The timer includes a selectable 24-, 48-, or 72-hour rain delay.

Activating rain delay temporarily pauses automatic irrigation.

When the selected period expires, the saved schedules resume.

That prevents you from having to erase or rebuild four different programs after rainfall.

Rain Delay Is Not Automatic Rain Detection

The supplied information does not mention a rain sensor, WiFi connection, or internet weather service.

The rain-delay feature should therefore be understood as a manual pause function unless the product manual states otherwise.

You decide when rainfall justifies stopping irrigation and select the appropriate delay.

How to Choose the Right Delay

A short shower and a multi-hour storm should not necessarily result in the same pause.

Consider:

• Amount of rain
• Soil drainage
• Temperature
• Plant water needs
• Sun exposure

Clay soil can remain wet much longer than sandy soil.

Use the 24-, 48-, and 72-hour options according to actual conditions rather than automatically choosing the longest delay.

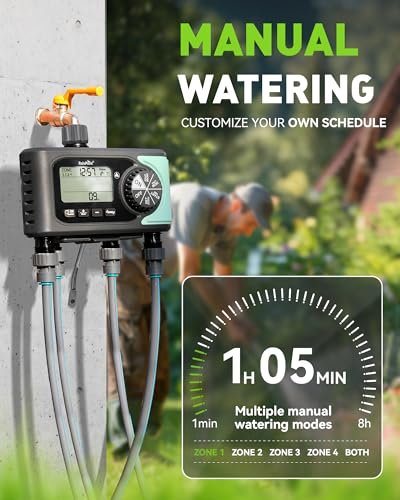

Manual Watering From 1 Minute to 8 Hours

Manual mode allows temporary watering for approximately 1 minute to 8 hours without changing the automatic schedules.

This is useful when you need to use one zone outside its normal program.

For example, you may want to:

• Water newly transplanted plants
• Wash the car
• Rinse a patio
• Run a hose temporarily
• Give one garden bed extra water

Once the manual cycle is finished, automatic scheduling remains intact.

Manual Mode Is Useful Beyond Irrigation

Because each outlet is essentially a controlled hose connection, manual mode can support ordinary outdoor water tasks.

You might connect a hose for car washing or garden cleanup without dismantling the irrigation schedule.

Just make sure the selected zone and duration are appropriate for the task.

Large 3.3-Inch LCD Display

The timer includes a 3.3-inch LCD display.

A large screen is particularly valuable on a four-zone controller because there is more information to manage.

The display can make it easier to confirm:

• Current time
• Active zone
• Start times
• Watering duration
• Frequency
• Battery condition
• Rain delay

For first-time users, a larger interface can reduce programming mistakes.

Large Dial and Four Buttons

The timer combines a large dial with four clearly identified buttons.

This creates a more conventional appliance-style interface than a compact hose timer with only one or two controls.

The aim is to make four-zone scheduling manageable without requiring a smartphone app.

No WiFi Required

No WiFi, Bluetooth, or mobile-app functionality is mentioned in the supplied information.

The timer appears to operate entirely locally.

That means it does not depend on:

• Home internet
• Cloud servers
• Router signal
• Smartphone compatibility
• Account registration

Once programmed, the schedules run directly on the device.

The Tradeoff of Local-Only Control

The lack of remote connectivity means you cannot appear to modify watering from your phone.

If rain begins while you are away, you cannot activate the delay remotely.

For people who travel frequently and want weather-aware irrigation, a WiFi controller may be a better choice.

For users who value simplicity and independence from internet services, local programming can be preferable.

Heavy-Duty Brass Water Inlet

The timer uses a brass inlet connection rather than a basic plastic-threaded faucet fitting.

That is especially important on a four-zone timer because the unit itself is relatively large and heavy.

Brass provides greater rigidity at the point where the entire assembly attaches to the faucet.

It can also resist thread wear from repeated installation and removal.

Reinforced Inlet Column

The source states that the inlet includes additional structural reinforcement.

That can help support the weight of the controller and connected hoses.

This matters because four hose connections create considerably more mechanical load than a basic single-zone timer.

Maximum Listed Pressure of 116 PSI

The timer is rated for water pressure up to 116 PSI according to the supplied information.

That covers a broad range of residential water supplies.

However, maximum supported pressure should not be confused with ideal operating pressure.

Very high household pressure can still stress hoses, fittings, sprinklers, and irrigation components.

Higher Pressure Is Not Always Better

Excessive water pressure can result in:

• Leaks
• Hose failures
• Sprinkler misting
• Drip emitter damage
• Uneven distribution
• Excessive water consumption

If household pressure is unusually high, a regulator may still be useful even if the timer can technically withstand it.

Important Weight Consideration

The product is described as weighing close to 3 pounds.

That is significant for equipment hanging from an outdoor faucet.

The manufacturer specifically advises installing the supplied rear metal support rod so the timer's full weight is not carried entirely by the faucet and inlet connection.

This is not an optional detail to ignore.

Why the Support Rod Matters

A three-pound timer plus four attached hoses can place substantial leverage on the hose bib.

Without support, that weight can stress:

• Timer inlet
• Faucet threads
• Wall-mounted hose bib
• Plumbing inside the wall

Using the support rod helps transfer some of the mechanical load away from the inlet.

Support the Hoses Too

Even with the rear support installed, the hoses should not hang heavily from the outlets.

Route them toward the ground so their weight is supported naturally.

Avoid tight bends or sideways tension.

Reducing mechanical load can extend the life of both the timer and the faucet.

Four AA Batteries

The timer requires four AA batteries, which are not included.

Because it powers four independent valves, its battery requirements are greater than many single-zone timers.

Battery life is not specified in the supplied description.

Actual runtime will depend on how often the valves open and close, outdoor temperature, and battery quality.

Low-Battery Indicator

When battery power becomes low, an indicator flashes on the display.

This gives users time to replace the batteries before the timer stops operating normally.

Check the display periodically, particularly before leaving the property for an extended period.

Automatic Valve Closure During Low Battery

The timer is designed to close its valves when battery power becomes too low.

This is an important fail-safe.

If the electronics simply stopped while a valve was open, large amounts of water could continue flowing.

Failing closed helps reduce the risk of flooding and unnecessary water consumption.

Missed Watering Is Still Possible

While automatic closure protects against uncontrolled flow, it also means irrigation will stop once the batteries become too weak.

If plants depend on the timer while you are away, weak batteries can still become a problem.

Fresh batteries before a long trip are a sensible precaution.

Weatherproof Construction

The timer is described as having a heavy-duty weather-resistant body designed for outdoor use.

It should tolerate ordinary sunlight, rain, and wind during the watering season.

However, weather resistance does not mean it is safe under every environmental condition.

Remove Before Freezing Weather

As with almost any hose timer, freezing water can damage internal valves.

Before winter:

1. Disconnect the timer.
2. Drain all water.
3. Remove batteries if storing for a long period.
4. Keep the unit in a dry location.

Outdoor weather resistance does not make plumbing components freeze-proof.

Fits Standard 3/4-Inch Faucets and Hoses

The timer is designed for 3/4-inch faucet and garden-hose connections.

This is the standard size used by many residential outdoor hose systems.

Installation should therefore be straightforward in typical gardens.

Check washers and thread condition before pressurizing the system.

Installation Requires More Care Than a Single-Zone Timer

Because the controller is heavier and has four outlets, installation deserves more attention.

Mount the timer securely, install the support rod, and route each hose carefully.

Then inspect every connection for leaks.

A small leak multiplied across several connections can waste a noticeable amount of water.

Do Not Overtighten Connections

Garden hose connections generally seal using washers.

Overtightening can damage seals or threads.

Start by tightening connections by hand.

If water appears, inspect the washer and thread alignment before applying more force.

Test Every Zone Individually

Before relying on automatic watering, manually activate each of the four zones.

Confirm that:

• The correct valve opens.
• Water flow is adequate.
• The valve closes completely.
• No connections leak.
• The display identifies the right zone.

Then test the automatic sequence.

Test for Schedule Overlap

Because only one zone can operate at a time, this step is critical.

Program a short test schedule for all four zones and confirm they run sequentially without conflict.

Do not wait until a vacation to discover that two programmed start times overlap.

Example Four-Zone Irrigation Plan

A typical household might configure the timer like this:

Zone 1: Front Lawn

A portable sprinkler runs for 35 minutes every three days.

Zone 2: Vegetable Garden

A drip system runs for 45 minutes each morning.

Zone 3: Flower Beds

A soaker hose runs for 60 minutes every two days.

Zone 4: Greenhouse

A low-flow line runs for shorter intervals more frequently.

The advantage is that all four zones can share one faucet without using the same schedule.

Lawn Irrigation

For a lawn sprinkler, water pressure and coverage are particularly important.

Sequential operation helps ensure the sprinkler receives the full available flow.

Rather than watering lightly every day, many established lawns benefit from deeper watering at longer intervals, depending on climate and grass type.

Vegetable Garden Irrigation

Vegetables often need more consistent moisture.

Drip irrigation or soaker hoses can deliver water directly to the root zone.

A dedicated zone makes it easy to adjust frequency throughout the growing season without affecting the lawn program.

Flower Beds

A separate flower-bed zone prevents ornamental landscaping from being tied to turf watering.

This is useful because flower beds may have different soil, mulch, shade exposure, and root depth.

Greenhouse Applications

A fourth outlet can serve a greenhouse or covered growing area.

Greenhouses often dry quickly because they do not receive rainfall directly.

The ability to schedule irrigation at hourly intervals can be particularly useful here.

Drip Irrigation Systems

The timer can control drip systems, but the downstream irrigation setup may require:

• Pressure regulator
• Filter
• Distribution tubing
• Emitters

The timer only determines when water flows.

It does not automatically reduce household pressure to the level required by all drip equipment.

Soaker Hoses

Soaker hoses can benefit from longer watering durations.

They slowly release water along their length and work well around hedges, raised beds, and rows of plants.

The nearly four-hour automatic duration range provides plenty of flexibility.

Check Flow Rate Before Designing Four Zones

Because all zones share one faucet, the faucet's available flow determines what each zone can support.

A simple bucket test can help.

If a 5-gallon bucket fills in one minute, the faucet delivers roughly 5 GPM under those conditions.

That information can help you select appropriate sprinklers and drip layouts.

Why Flow Still Matters Even With Sequential Operation

Sequential watering prevents zones from competing at the same time, but each individual zone can still demand more water than the faucet supplies.

For example, one large sprinkler system requiring 8 GPM will still underperform if the faucet can only deliver 5 GPM.

The timer controls the valve; it does not increase flow.

Soil Type Should Influence Programming

Sandy Soil

Sandy soil drains quickly.

Shorter, more frequent watering may sometimes be appropriate.

Clay Soil

Clay absorbs water slowly and retains moisture longer.

Long high-flow sessions can cause runoff.

Loam

Loamy soil generally provides balanced drainage and retention.

Adjust each zone based on its own soil rather than assuming all four need identical schedules.

Use Different Schedules for Sun and Shade

Even the same plant species may need different irrigation depending on exposure.

A sunny bed can dry much faster than one shaded by trees or the house.

Four independent zones allow you to reflect those differences.

Seasonal Adjustment

Schedules should change through the year.

Summer heat may justify more watering.

Cooler weather and shorter days usually reduce demand.

Rainy periods may eliminate the need for supplemental irrigation temporarily.

The timer's flexibility is valuable only if programs are updated as conditions change.

Check Local Water Restrictions

Many municipalities limit lawn watering during dry periods.

With four independently scheduled zones, it is easy to accidentally create irrigation outside permitted hours if the programs are not coordinated carefully.

Check local rules and build the entire four-zone sequence within the allowed watering window.

4-Zone Timer vs. Single-Zone Timer

A single-zone timer is much smaller and simpler.

It works well if one faucet serves one sprinkler or irrigation line.

A four-zone model becomes worthwhile when several garden areas need independent schedules.

The additional complexity only makes sense if those extra outlets will actually be used.

4-Zone Timer vs. Dual-Zone Timer

A dual timer is sufficient for two areas.

The four-zone model offers far more flexibility for mixed landscapes.

For example, it can independently manage turf, vegetables, ornamentals, and greenhouse irrigation.

The tradeoff is greater weight, programming complexity, and battery use.

4-Zone Hose Timer vs. Smart WiFi Timer

A WiFi irrigation controller can provide remote adjustments and potentially automatic weather-based scheduling.

This model offers local control instead.

That means fewer connectivity problems but no confirmed remote access.

Users who prefer simple standalone equipment may see that as an advantage.

4-Zone Timer vs. Underground Sprinkler Controller

A permanent sprinkler controller typically operates wired solenoid valves installed in underground irrigation systems.

It can manage many zones and advanced sensors.

This hose timer is much easier to install.

It is designed for four above-ground hose-fed irrigation lines connected to a single faucet.

For smaller properties or renters, that simplicity can be much more practical.

Good Option for Renters

Because the timer attaches to a standard hose bib without permanent plumbing changes, it can work well for rental properties where irrigation infrastructure is limited.

It can also be removed and taken to another property later.

The support hardware should be installed without damaging the property unnecessarily.

Good Option for Vacation Watering

Four automatic zones can maintain a substantial garden while you are away.

Before traveling:

• Install fresh batteries.
• Test every valve.
• Verify the schedule.
• Check for overlapping times.
• Inspect all hoses.
• Activate support hardware.
• Look for leaks.

Run the system for several days before departure.

Common Programming Mistakes

The most important mistake is overlapping zone schedules.

Because the timer can operate only one zone at a time, every program needs adequate separation.

Another mistake is setting watering frequency without considering the duration of the previous cycle.

For example, if one zone runs for almost four hours, an hourly repeat interval would obviously conflict.

Other Common Mistakes

Users may also:

• Forget the support rod
• Ignore low battery warnings
• Leave the timer installed during freezes
• Use excessive watering durations
• Overtighten hose fittings
• Assume rain delay detects weather automatically

Avoiding these errors can greatly improve reliability.

Main Advantages

The strongest advantage is the ability to manage four independently programmed irrigation areas from one faucet.

The timer offers flexible start times, watering durations from 1 minute to 3 hours 59 minutes, hourly or multi-day frequencies, manual watering up to eight hours, and 24/48/72-hour rain delay.

The large LCD, brass inlet, reinforced structure, 116 PSI maximum rating, four-valve design, low-battery warning, automatic fail-closed behavior, and support rod make it a substantial step up from a basic hose timer.

Potential Drawbacks

The unit is relatively heavy at close to three pounds.

It requires four AA batteries.

Only one zone can operate at a time, which means careful programming is necessary.

Automatic rain sensing and WiFi control are not described.

And four separate hose connections create more opportunities for leaks than a single-zone setup.

For very large or permanent landscapes, a conventional irrigation controller may ultimately be a better solution.

Who Should Consider This 4-Zone Sprinkler Timer?

This timer is particularly suitable for users who have one faucet but several independent watering areas, such as:

• Front lawn
• Backyard lawn
• Vegetable garden
• Flower beds
• Greenhouse
• Raised beds
• Drip irrigation
• Soaker hoses
• Rental properties
• Vacation gardens

It is best for hose-based systems where four zones need different schedules but professional underground irrigation is unnecessary.

Frequently Asked Questions

How many watering zones does this timer have?

Four independent outlets.

Can every zone have its own schedule?

Yes.

Can all four zones run simultaneously?

No. The manufacturer states that only one valve can be open at a time.

Why is that important?

Schedules must be arranged sequentially so they do not overlap.

What is the automatic watering duration range?

From 1 minute to 3 hours and 59 minutes.

How often can watering occur?

From every 1 to 12 hours or every 1 to 7 days.

Does it have manual watering?

Yes.

How long can manual watering run?

From approximately 1 minute to 8 hours.

Does manual watering erase the automatic schedule?

No. It is designed for temporary use without changing saved programs.

Does it have rain delay?

Yes.

What delay periods are available?

24, 48, or 72 hours.

Does it automatically detect rainfall?

Automatic rain sensing is not stated, so rain delay should be treated as manually activated.

What size is the display?

Approximately 3.3 inches.

Does it use a dial?

Yes, along with four control buttons.

What faucet size does it fit?

Standard 3/4-inch faucets and garden hoses.

Is the inlet brass?

Yes.

What maximum water pressure is listed?

Up to 116 PSI.

What batteries does it use?

Four AA batteries.

Are batteries included?

No.

Does it warn when batteries are low?

Yes.

What happens when battery power becomes too low?

The valves are designed to close automatically to reduce the risk of uncontrolled water flow.

How much does the timer weigh?

The source states that it is close to 3 pounds.

Does it require additional support?

Yes. The manufacturer recommends installing the rear metal support rod to prevent excessive load on the inlet.

Can it be used with sprinklers?

Yes.

Can it be used with drip irrigation?

Yes, with appropriate downstream components.

Does it require WiFi?

No WiFi requirement is mentioned.

Final Verdict

This 4-zone programmable sprinkler timer is a practical option for homeowners who need considerably more irrigation control than a basic single- or dual-outlet hose timer can provide.

Its key strengths are the four independently programmable zones, flexible hourly or multi-day schedules, nearly four-hour automatic watering duration, eight-hour manual mode, 24/48/72-hour rain delay, large LCD display, brass inlet, reinforced construction, low-battery protection, and automatic valve closure.

The most important limitation is also easy to manage once understood: only one zone can run at a time. Programs must therefore be scheduled sequentially without overlap. For most residential faucets, that can actually improve irrigation performance by preserving water pressure for each individual zone.

For a property divided into lawn, vegetable garden, flower beds, greenhouse, drip irrigation, or multiple hose-fed watering areas, this four-zone timer offers a flexible way to automate the entire setup from one outdoor faucet without installing a permanent irrigation controller.
