Rain Bird TRU8O 8-Zone Irrigation Controller Review: Flexible Sprinkler Scheduling With Optional WiFi Control

A good irrigation controller should do more than switch sprinklers on and off. Different parts of a yard often have very different watering needs, and an effective controller should make it possible to treat those areas independently without turning everyday scheduling into a complicated chore.

The Rain Bird TRU8O 8-zone irrigation controller is designed for that type of residential landscape management. It can control up to eight irrigation valves, supports multiple watering programs and start times, offers seasonal adjustments and rain delays, and includes several professional-style features that are useful in more complex sprinkler systems.

The controller works as a conventional standalone timer out of the box, while optional WiFi functionality can be added with the separately sold Rain Bird LNK2 WiFi Module. This combination makes the TRU8O particularly interesting for homeowners who want reliable physical controls today but may also want app-based irrigation management later.

What Is the Rain Bird TRU8O Irrigation Controller?

The TRU8O is an indoor/outdoor sprinkler controller designed to automate a conventional 24 VAC irrigation system.

It can manage up to eight irrigation zones or stations, with each station typically controlling one electrically operated valve.

The supplied specifications include:

• Eight-zone capacity
• Indoor/outdoor weather-resistant enclosure
• Three independent programs: A, B, and C
• Up to four start times per program
• Watering duration from 1 minute to 6 hours
• Weekly, odd/even, and cyclic scheduling
• Manual watering
• Seasonal adjustment
• Rain delay
• Permanent days off
• Optional rain-sensor support
• Optional WiFi through Rain Bird LNK2 module
• Non-volatile programming memory
• Built-in lithium battery for time and date retention
• Master valve and pump-start relay support
• Surge protection
• Valve fault detection
• Interstation delay
• Rain-sensor bypass by zone
• Save and restore programming

That makes it substantially more capable than a basic mechanical sprinkler timer.

What Does an 8-Zone Irrigation Controller Actually Control?

A zone is normally a section of the irrigation system operated by a dedicated electric valve.

A typical eight-zone landscape might be divided into areas such as:

• Front lawn
• Backyard lawn
• Side yard
• Flower beds
• Shrubs
• Vegetable garden
• Trees
• Drip irrigation

Each area can then receive a watering schedule appropriate to its plants, soil, sun exposure, and sprinkler type.

Why Separate Irrigation Zones Matter

Treating an entire property as one watering area is often inefficient.

A sunny lawn may dry much faster than a shaded shrub bed. Drip irrigation may also need a much longer run time than spray heads because it applies water more slowly.

By separating the landscape into zones, irrigation can be tailored much more precisely.

That can reduce both underwatering and unnecessary watering.

Three Independent Watering Programs

One of the TRU8O's strongest scheduling features is its support for three programs: A, B, and C.

Independent programs allow different groups of zones to follow different schedules.

For example, you might configure:

• Program A for lawn sprinklers
• Program B for flower beds
• Program C for drip irrigation

This is more flexible than forcing every station to follow the same watering days.

Up to Four Start Times Per Program

Each program supports as many as four start times.

Across programs A, B, and C, that provides up to 12 programmed start times.

Multiple start times can be useful when watering needs to be divided into shorter cycles.

For example, instead of running a lawn zone continuously for 30 minutes, you might use several shorter cycles to give compacted soil more time to absorb water.

Be Careful With Excessive Start Times

A start time normally starts the entire selected program, not just one individual station.

This is a common source of confusion with irrigation controllers.

If four start times are configured for one program, every enabled station within that program may potentially run four times.

Before adding more start times, make sure they are actually necessary.

Watering Duration From 1 Minute to 6 Hours

Individual station run times can reportedly be set from 1 minute to 6 hours.

That broad range makes the controller suitable for several irrigation methods.

Shorter times may work for:

• Spray irrigation
• Small lawn areas

Longer durations may be appropriate for:

• Drip irrigation
• Low-flow emitters
• Deep watering applications

The correct run time depends on precipitation rate and soil conditions rather than a universal duration.

Weekly Watering Schedules

The controller can operate on selected days of the week.

This makes it possible to create schedules such as:

• Monday, Wednesday, Friday
• Tuesday and Saturday
• Weekend-only watering

Weekly scheduling is straightforward and works well in landscapes with consistent irrigation requirements.

Odd and Even Calendar-Day Scheduling

The TRU8O also supports watering on odd or even calendar dates.

This can be particularly useful in municipalities where irrigation restrictions assign watering days according to street address or calendar date.

Always verify current local watering rules before programming the controller.

Cyclic Watering Every 1 to 30 Days

Cyclic scheduling allows watering at a repeating interval from every day up to every 30 days.

This can be useful for areas that do not fit neatly into a weekly pattern.

For example, certain established shrubs or trees may need deeper but less frequent irrigation.

Manual Watering Control

The controller supports manual operation when you need water outside the normal schedule.

You can reportedly run:

• One station
• All stations
• An individual program

This is useful after activities such as:

• Planting
• Fertilizing
• Lawn repair
• Irrigation maintenance

Manual watering avoids having to permanently modify the normal program for one temporary need.

Seasonal Adjustment From 5% to 200%

Watering requirements change throughout the year.

Instead of reprogramming every station manually, the TRU8O provides a seasonal adjustment feature that can modify run times from approximately 5% to 200%.

For example, if a lawn program normally runs for 20 minutes, reducing seasonal adjustment can shorten the effective watering duration without changing the underlying program.

Why Seasonal Adjustment Is Useful

During cooler months, a landscape may need significantly less irrigation than during hot, dry weather.

Seasonal adjustment allows the controller to respond to those changes quickly.

It can also be applied across all programs or individually, according to the supplied description.

That gives more flexibility when lawns and drip-irrigated beds respond differently to seasonal changes.

Manual Rain Delay

The controller includes a rain-delay feature that can pause watering for 1 to 14 days.

This is useful after substantial rainfall.

Rather than disabling the system and remembering to restart it manually, you can specify a temporary delay and let the controller resume normal scheduling afterward.

Optional Rain Sensor Integration

The TRU8O can also work with a compatible rain sensor sold separately.

A rain sensor can automatically suspend irrigation when sufficient rainfall occurs and allow watering to resume when conditions change.

This provides more automatic weather responsiveness than relying only on manual rain delays.

Rain Sensor Bypass by Zone

One of the more advanced features is the ability to bypass the rain sensor for selected stations.

This may be useful if certain areas still need water even while conventional lawn irrigation is suspended.

For example, a covered planting area might not receive rainfall even though the rain sensor has been triggered.

Permanent Days Off

The controller can designate specific days when irrigation should never operate.

This is useful for predictable activities such as:

• Lawn mowing
• Landscaping maintenance
• Pool service
• Outdoor events

Instead of repeatedly suspending the irrigation system, permanent days off can be built into the schedule.

Interstation Delay

The TRU8O supports an interstation delay ranging from approximately 1 second to 9 hours.

An interstation delay inserts a pause between irrigation zones.

This can be useful when:

• A well needs recovery time
• Water pressure needs time to stabilize
• A pump requires a controlled sequence
• Slow-closing valves create pressure concerns

For most standard municipal-water installations, only a short delay may be necessary, if any.

Master Valve and Pump-Start Relay Support

The controller can manage a master valve or pump-start relay.

This is important in irrigation systems that use:

• Well pumps
• Booster pumps
• Central shutoff valves

The controller can coordinate these components with individual irrigation zones.

Pump installations should be designed carefully because controller outputs typically operate a relay rather than powering a pump motor directly.

Valve Fault Detection

A useful troubleshooting feature is automatic detection of valve-related electrical problems.

According to the supplied description, the controller can identify a problem station, suspend watering to that zone, and display the valve number associated with the fault.

This can simplify troubleshooting when an irrigation system suddenly stops working correctly.

Why Automatic Fault Detection Matters

Without diagnostic feedback, homeowners may have to test every station manually.

A controller that identifies the affected zone can narrow the problem to:

• Solenoid
• Wiring
• Valve connection
• Related circuit

That does not replace electrical troubleshooting, but it can significantly shorten the diagnostic process.

Built-In Surge Protection

The controller includes surge protection intended to reduce damage from electrical surges and lightning-related events.

Outdoor irrigation wiring can extend across large areas of a property, making it potentially susceptible to electrical transients.

Built-in protection is therefore a useful feature.

It should not be interpreted as a guarantee that severe lightning strikes cannot damage the controller.

Programming Survives Power Outages

The TRU8O uses non-volatile memory to retain irrigation programming.

This means programmed watering schedules do not need to be entered again after a typical power interruption.

A built-in lithium battery maintains the clock and calendar information.

This is an important practical advantage because an irrigation controller may otherwise return with incorrect date and time settings after a prolonged outage.

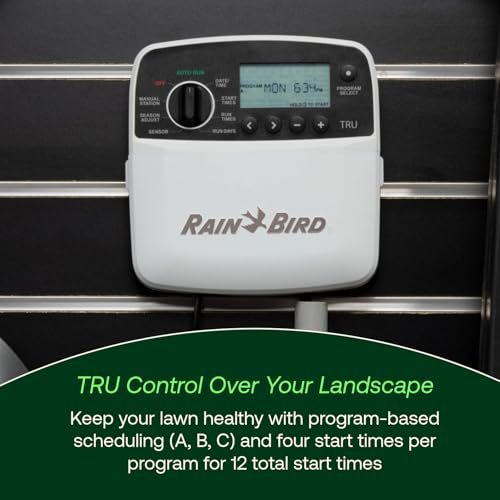

Physical Programming Dial

The controller uses a traditional rotary programming dial combined with a multifunction LCD screen.

This format remains popular because it provides direct access to core settings without requiring a smartphone.

You can select a function with the dial and review its settings on the display.

For homeowners who prefer physical controls, this can be simpler than app-only irrigation controllers.

WiFi Is Optional, Not Built In

The TRU8O is described as WiFi-ready, which is different from having WiFi included.

To enable mobile connectivity, the controller requires the separately sold Rain Bird LNK2 WiFi Module.

This is an important purchasing detail.

The controller remains fully usable without the WiFi module, but remote app control requires the additional accessory.

What the LNK2 WiFi Module Adds

With the compatible module installed, the controller can be managed through supported Rain Bird mobile applications on compatible iOS or Android devices.

Remote access can make it easier to:

• Adjust schedules
• Start watering
• Stop watering
• Check settings

without standing in front of the controller.

This is particularly useful when the controller is installed in a garage, utility area, or outside enclosure.

Why Optional WiFi Can Be an Advantage

Built-in WiFi is convenient, but an optional module provides another benefit: the irrigation controller does not depend on cloud or app access for basic operation.

Physical controls remain available.

That can be reassuring for homeowners who want smart features without making their sprinkler system entirely dependent on a wireless connection.

Weatherproof Indoor/Outdoor Enclosure

The controller comes installed in a contractor-style weather-resistant enclosure.

That allows it to be used in indoor or appropriate outdoor locations according to its installation requirements.

The supplied specifications list an IP24 rating.

This means it is designed for environmental protection appropriate to its rated use, but it should still be installed according to Rain Bird's placement instructions.

Do not assume weather-resistant means suitable for unrestricted exposure to standing water or pressure washing.

Operating Temperature Range

The supplied information lists a maximum operating temperature around 149°F (65°C).

Storage is listed from approximately -40°F to 150°F (-40°C to 66°C).

Those specifications indicate a controller intended to tolerate typical utility-room, garage, and outdoor-enclosure environments when properly installed.

Humidity Considerations

The controller is specified for high humidity in a non-condensing environment.

Condensation is important because water collecting inside electrical equipment can cause reliability and safety problems even when the surrounding air humidity itself is within specification.

Compatible With Standard 24 VAC Irrigation Valves

The TRU8O is designed to work with most conventional 24 VAC irrigation valves.

This is the common electrical standard used by many residential sprinkler systems.

That makes it suitable for replacing or upgrading many existing controllers without replacing every valve in the landscape.

Compatibility should still be verified for unusual or proprietary irrigation hardware.

Included Power Components

The supplied package includes:

• Transformer
• Power plug
• Approximately 6-foot power cord
• User manual

The external power supply is listed as:

Input: 120 VAC, 60 Hz
Output: 24 VAC, 60 Hz, 0.750 A

Electrical installation should follow local code and manufacturer instructions.

Robust Connection Terminals

The controller includes screw terminals for:

• Station valves
• Common wiring
• AC power
• Master valve or pump-start relay
• Rain or rain/freeze sensor

Clearly organized terminals can make installation and later troubleshooting much easier.

WaterSense Capability

The supplied description states that the controller can meet EPA WaterSense criteria when paired with the LNK2 WiFi Module and an appropriate rain sensor, both sold separately.

That distinction matters.

The base controller by itself should not automatically be described as WaterSense-certified based solely on this statement.

The additional components and configuration are part of the stated qualification.

Best Use Cases

The TRU8O is especially suitable for residential landscapes with multiple irrigation requirements.

Lawns

Separate front, side, and backyard turf into different stations.

Drip Irrigation

Use a dedicated program for low-flow landscape beds.

Shrubs and Trees

Configure longer and less frequent watering independently from lawn spray zones.

Mixed Landscapes

Different programs allow turf, flowers, and drip systems to coexist without forcing everything onto one schedule.

Eight Zones vs. Four Zones

A four-zone controller may be enough for a small landscape.

An eight-zone system provides more flexibility for:

• Larger yards
• Separate front and rear systems
• Multiple drip zones
• Future expansion

It can be useful to choose slightly more capacity than currently required if future landscaping plans may add zones.

Rain Bird TRU8O vs. Hose Timers

A hose timer controls water directly at an outdoor faucet.

The TRU8O instead operates electric irrigation valves connected to a permanent sprinkler system.

This makes it far more suitable for:

• In-ground sprinklers
• Multiple irrigation valves
• Larger landscapes

A hose timer is simpler for temporary watering, while the TRU8O is intended for a structured irrigation installation.

Smart Controller vs. Traditional Controller

Without the optional WiFi module, the TRU8O operates much like a sophisticated conventional controller.

With the LNK2 module, it gains smart-home-style convenience.

This gives users the choice between:

• Local physical control
• Remote smartphone management

rather than forcing one method.

Common Programming Mistakes

Confusing Start Times With Station Times

A program start time begins the entire irrigation program.

Adding four start times can cause the program to run four separate times.

Overwatering With Multiple Programs

Be careful when placing the same station in overlapping programs.

Ignoring Seasonal Changes

A summer schedule may apply far too much water in cooler months.

Disabling the System Instead of Using Rain Delay

Temporary rain delay is easier to recover from automatically.

Forgetting Permanent Maintenance Days

Program landscaping-service days as non-watering days to prevent sprinklers from running while people are working in the yard.

How to Build a Better Irrigation Schedule

Start by grouping zones according to their irrigation method and landscape needs.

Avoid combining areas with dramatically different watering requirements in the same program whenever possible.

Then determine:

• Watering days
• Start time
• Run time
• Seasonal adjustment

Observe the landscape over several weeks and fine-tune the schedule based on actual soil moisture and plant response.

Avoid Assuming Longer Watering Is Better

A six-hour maximum run time does not mean most zones should operate anywhere near that long.

Overwatering can create:

• Runoff
• Shallow roots
• Water waste
• Plant stress

Run time should be based on the irrigation system's actual precipitation rate.

Consider Cycle-and-Soak Through Multiple Start Times

Although the supplied description does not identify a dedicated Cycle & Soak feature, multiple program start times may potentially be used to divide irrigation into shorter sessions when configured carefully.

For example, a lawn that needs a total of 30 minutes might sometimes benefit from several shorter applications rather than one uninterrupted run.

Any such setup should be tested to avoid accidentally repeating the entire irrigation schedule more often than intended.

Advantages and Considerations

Advantages

• Controls up to eight irrigation valves
• Three independent programs
• Up to four start times per program
• 1-minute to 6-hour station run times
• Weekly, odd/even, and cyclic scheduling
• Seasonal adjustment
• Rain delay
• Optional rain-sensor support
• Permanent days off
• Manual station and program control
• Interstation delay
• Master valve and pump support
• Valve fault detection
• Non-volatile memory
• Surge protection
• Weather-resistant enclosure
• Optional WiFi upgrade

Potential Considerations

LNK2 WiFi module is sold separately.

Rain sensor is sold separately.

Programming is more complex than a basic hose timer.

Eight zones may be excessive for very small landscapes.

WaterSense criteria depend on additional components according to the supplied description.

Frequently Asked Questions

How many irrigation zones does the Rain Bird TRU8O support?

Up to eight stations or valves.

Does it have built-in WiFi?

No. It is WiFi-ready and requires the separately sold Rain Bird LNK2 module for remote connectivity.

Can it work without WiFi?

Yes. The controller can be programmed and operated locally using its dial and LCD interface.

How many watering programs are available?

Three: A, B, and C.

How many start times can each program have?

Up to four.

What is the maximum station run time?

The supplied specifications list up to 6 hours.

Can it water on odd or even days?

Yes.

Can it run on a repeating interval?

Yes. Cyclic scheduling can reportedly be set from every 1 to 30 days.

Does it have a rain delay?

Yes, from approximately 1 to 14 days.

Can it connect to a rain sensor?

Yes, with a compatible sensor sold separately.

Does programming disappear during a power failure?

The controller uses non-volatile memory to retain programming, while a lithium battery maintains time and date according to the supplied information.

Can it control a pump?

It supports a master valve or pump-start relay connection. The pump itself should be controlled through the appropriate relay configuration.

Can one zone ignore the rain sensor?

The supplied specifications include rain-sensor bypass by station.

Is it suitable for outdoor installation?

It is supplied in a weather-resistant enclosure and is described for indoor/outdoor irrigation-controller applications. Installation still needs to follow its IP rating and manufacturer instructions.

Final Thoughts

The Rain Bird TRU8O 8-zone irrigation controller is designed for homeowners who want the flexibility of a professional-style sprinkler controller without giving up straightforward local operation.

Its strongest features are the three independent programs, broad scheduling options, eight-zone capacity, seasonal adjustment, rain delay, manual controls, diagnostic capabilities, and support for master valves or pump-start relays. The controller can also be upgraded later with the LNK2 WiFi Module, giving users a practical path from conventional irrigation control to remote smartphone management.

The main consideration is that its flexibility comes with more programming options than a basic timer. Understanding the difference between programs, station run times, and program start times is especially important to avoid accidentally watering the same landscape several times.

For homeowners looking for an 8-zone indoor/outdoor sprinkler controller with flexible programming, optional WiFi, rain-sensor support, seasonal adjustment, power-outage memory, and professional irrigation features, the Rain Bird TRU8O offers a capable platform for managing a diverse residential landscape.
