1/2-Inch ID PVC Vinyl Tubing: Flexible Clear Tubing for Water, Air, Aquariums, and Low-Pressure Applications

Flexible PVC vinyl tubing is one of those simple materials that can solve a surprisingly wide range of fluid-transfer problems. Whether you're moving water through an aquarium system, creating a drainage line, connecting equipment in a workshop, or building a small irrigation setup, flexible tubing provides an alternative to rigid piping when adaptability and easy installation matter.

This 1/2-inch ID PVC vinyl tubing combines a smooth interior, flexible construction, and clear walls in a 10-foot length. It is intended primarily for low-pressure liquid and air transfer applications and can be cut to the required length for custom installations.

Understanding the tubing's dimensions, pressure rating, temperature limitations, and material characteristics is important before choosing it for a project. Here's what to consider.

Understanding the Tubing Dimensions

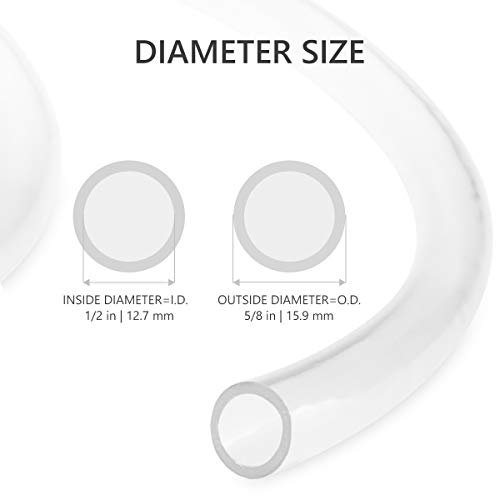

Flexible tubing is commonly identified by its inside diameter (ID) and outside diameter (OD). These measurements are particularly important when matching tubing with fittings, barbed connectors, pumps, valves, or other equipment.

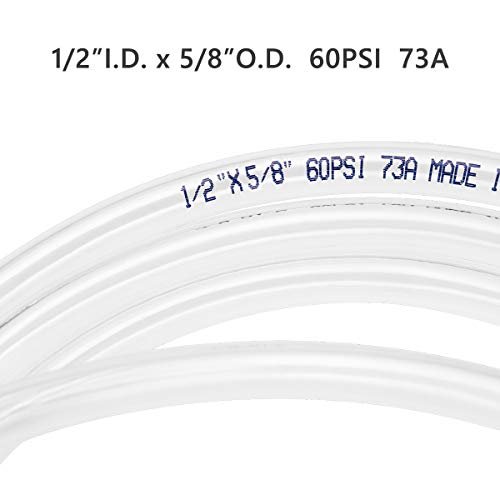

This PVC tubing has the following specifications:

• Inside diameter (ID): 1/2 inch
• Outside diameter (OD): 5/8 inch
• Length: 10 feet
• Wall thickness: approximately 1.6 mm
• Hardness: 73A
• Working pressure: up to 60 PSI

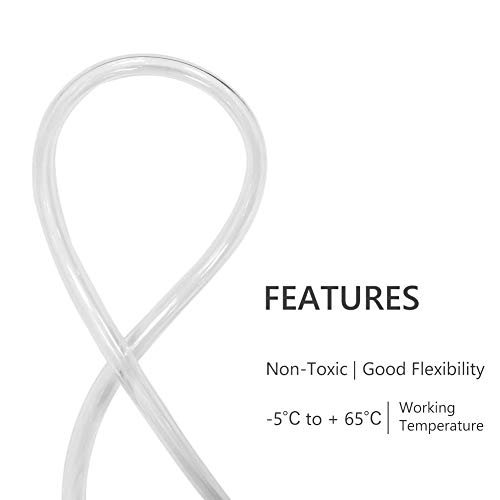

• Temperature range: 23°F to 149°F (-5°C to 65°C)

The 1/2-inch internal diameter determines the approximate size of fittings that may be compatible with the tubing. However, fitting dimensions and connection methods vary, so compatibility should always be checked before installation.

The 5/8-inch outside diameter includes the tubing wall and can become important when the hose needs to pass through clamps, openings, brackets, or other confined spaces.

Flexible PVC Construction for Everyday Projects

PVC is widely used for flexible tubing because it combines relatively low weight with useful resistance to moisture, abrasion, and many common environmental conditions.

Unlike rigid PVC pipe, flexible vinyl tubing can be routed around equipment and obstacles without requiring an elbow fitting at every change of direction. This can simplify smaller plumbing, aquarium, drainage, irrigation, laboratory, and workshop projects.

The material can also be cut to length with an appropriate cutting tool. This makes a longer section of tubing useful for projects requiring several shorter connections.

For the best connection, make a clean, straight cut rather than crushing or tearing the end of the tube. A poorly cut end may make installation over a fitting more difficult and can contribute to an unreliable connection.

Smooth Interior Helps Maintain Consistent Flow

The inside surface of tubing matters almost as much as its diameter.

A relatively smooth interior provides a straightforward pathway for liquids or gases and reduces the number of irregular surfaces where debris could become trapped. It also makes flushing the tubing easier when periodic cleaning is necessary.

This characteristic can be particularly useful for water-transfer applications where sediment, algae, or other material could otherwise accumulate inside the line.

The tubing also has a smooth exterior, making it easier to handle, wipe clean, and route through a system.

Clear Tubing Makes Visual Inspection Easier

One practical advantage of transparent vinyl tubing is visibility.

With opaque tubing, determining whether water is flowing properly or whether debris has accumulated inside the line may require disconnecting the system. Clear PVC allows visual inspection of the contents without immediately taking the installation apart.

That can be especially convenient for aquariums, ponds, hydroponic-style installations, laboratory setups, drainage systems, and other applications where being able to see the fluid pathway is useful.

Transparency does have a potential downside. When clear tubing is exposed to strong light while carrying nutrient-rich water, biological growth may become visible inside the line. Periodic inspection and cleaning may therefore be necessary depending on the application.

Suitable for Water and Low-Pressure Fluid Transfer

With a stated working pressure of up to 60 PSI, this tubing is primarily intended for compatible low-pressure applications.

Potential uses include water-transfer lines, drainage projects, aquarium equipment, ponds, indoor water features, certain irrigation projects, and compatible workshop or laboratory setups.

It may also be suitable for moving air and other compatible gases in low-pressure systems.

The actual performance of a tubing installation depends on more than the hose itself. Temperature, fittings, clamps, bends, fluid compatibility, age, and operating conditions can all affect the completed system.

For this reason, the tubing's rated pressure should not automatically be treated as the safe operating pressure of every assembled system.

Aquarium and Pond Applications

Flexible clear tubing is particularly convenient around aquariums because pumps, filters, air systems, and water-transfer equipment frequently require short sections of hose.

The 1/2-inch internal diameter can accommodate compatible equipment that uses appropriately sized connections. Its flexibility also allows the line to be routed around aquarium stands, filters, pumps, and other equipment.

Clear walls make it easier to identify air bubbles, debris, restricted flow, or buildup inside the tubing.

For aquarium use, always confirm that every component in contact with the water—including tubing, connectors, sealants, and fittings—is appropriate for the intended setup.

Irrigation and Indoor Watering Projects

Flexible PVC tubing can also be useful in certain garden and irrigation projects.

It may be used to connect compatible pumps, reservoirs, water distribution components, or other low-pressure watering equipment. Because it bends more easily than rigid pipe, the tubing can be routed around planters, containers, equipment, and structural obstacles.

However, flexible vinyl tubing should not automatically be considered a substitute for dedicated outdoor irrigation pipe.

Long-term exposure to sunlight, weather, temperature fluctuations, and pressure can affect materials differently. For permanent outdoor installations, tubing specifically rated for the environmental conditions of the project may be preferable.

Laboratory, Workshop, and General-Purpose Uses

PVC tubing is also commonly selected for general fluid-transfer tasks where flexibility and visibility are valuable.

Potential applications can include experimental equipment, workshop drainage, pump connections, water-transfer systems, engineering projects, and agricultural equipment.

Chemical compatibility requires particular attention.

PVC can resist various substances, including certain mild acids, alkalis, and alcohols, but that does not mean it is universally chemically resistant. Concentration, temperature, exposure duration, and the exact chemical involved can significantly change compatibility.

Always consult an appropriate chemical compatibility reference before using PVC tubing with anything other than a known compatible fluid.

Temperature and Pressure Matter

This tubing has a stated operating temperature range of approximately 23°F to 149°F (-5°C to 65°C) and a working pressure rating of 60 PSI.

These limits should be considered together rather than independently.

Flexible plastics can change characteristics as temperatures rise or fall. Elevated temperatures may soften tubing and can affect pressure capability, while very low temperatures can make some plastics less flexible.

If the application approaches either the temperature or pressure limits, verify that the tubing is appropriate for the exact operating conditions rather than assuming maximum ratings can safely be combined.

For demanding installations, use tubing specifically engineered and certified for the intended pressure, temperature, and fluid.

How to Install Flexible PVC Tubing

Installation is relatively straightforward, but a few details can improve reliability.

First, measure the required routing distance while allowing enough extra tubing to avoid creating sharp bends. Cut the hose cleanly and squarely using an appropriate cutting tool.

Connect the tubing to a properly sized fitting. Depending on the application, a hose clamp or another suitable retaining method may be needed to keep the connection secure.

Avoid forcing the tubing into extremely tight bends. A kink reduces the internal opening and can substantially restrict water or air flow.

After installation, test the system under normal operating conditions and inspect every connection for leaks.

Avoiding Kinks and Restricted Flow

One of the most common mistakes with flexible tubing is making the routing path too tight.

Although PVC hose bends easily, flexibility does not mean it can bend at any radius without affecting flow. A sharp turn can flatten the tube, reducing its effective internal diameter.

When planning the installation, use gradual curves whenever possible.

If a sharp directional change is unavoidable, using a suitable elbow or other fitting may provide better flow than forcing the tubing around a severe bend.

Cleaning and Maintenance

The smooth and transparent design makes routine inspection relatively easy.

If the tubing is used with water, periodically check for sediment, discoloration, algae, mineral deposits, or other buildup. The appropriate cleaning method depends on the application and what is flowing through the tube.

Disconnect the tubing safely before cleaning and flush it thoroughly with a cleaning method compatible with both the PVC and the system in which it is used.

Aquarium and other sensitive applications require particular care because residues from inappropriate cleaning products could contaminate the system.

PVC Tubing vs. Rigid PVC Pipe

Flexible tubing and rigid PVC pipe can both transport water, but they solve different problems.

Rigid pipe is generally better suited to permanent plumbing runs requiring structural stability and appropriately rated pressure performance. Flexible tubing is more convenient when equipment needs to be disconnected periodically, the route contains obstacles, or installation flexibility is important.

Flexible tubing can also reduce the number of fittings required for moderate changes in direction.

For a small pump, aquarium, water feature, or temporary transfer system, flexible tubing may therefore be considerably easier to work with than rigid pipe.

For permanent building plumbing or demanding pressurized installations, properly rated plumbing materials are generally the more appropriate choice.

What to Check Before Buying 1/2-Inch PVC Tubing

The inside diameter is only one factor to consider.

Before choosing tubing, verify the dimensions of the equipment and fittings you plan to connect. You should also consider operating pressure, water or fluid temperature, chemical compatibility, installation environment, bend radius, and whether the tubing will be exposed to sunlight.

For this tubing, the key specifications are a 1/2-inch ID, 5/8-inch OD, 10-foot length, approximately 1.6 mm wall thickness, 73A hardness, 60 PSI stated working pressure, and a temperature range from 23°F to 149°F.

Matching these characteristics to the actual project is more important than selecting tubing based on diameter alone.

Frequently Asked Questions

What does 1/2-inch ID mean?

ID means inside diameter. A 1/2-inch ID tube has an internal opening measuring approximately half an inch across. This measurement is commonly used when matching flexible tubing to compatible hose fittings.

What is the outside diameter?

The stated outside diameter is 5/8 inch. This measurement includes both the internal opening and tubing walls.

Can the tubing be cut into shorter sections?

Yes. Flexible PVC tubing can generally be cut to the required length using an appropriate cutting tool. Clean, square cuts usually make connections easier.

Can it be used for aquarium systems?

It may be suitable for compatible aquarium pumps, filters, water-transfer equipment, and other applications requiring its dimensions. Confirm compatibility with the specific equipment and intended use before installation.

Can PVC tubing be used outdoors?

It can be used for appropriate outdoor projects, but long-term exposure to sunlight and weather may affect some flexible PVC materials. For permanent outdoor installations, consider whether tubing specifically rated for continuous outdoor exposure would be more appropriate.

Is it suitable for pressurized water?

The supplied specification lists a working pressure of 60 PSI. Actual system suitability also depends on temperature, fittings, clamps, installation quality, and other operating conditions.

Can it carry chemicals?

PVC is compatible with some chemicals and incompatible with others. Never assume general chemical resistance. Verify compatibility with the specific substance, concentration, temperature, and exposure conditions involved.

Final Thoughts

1/2-inch ID flexible PVC vinyl tubing is a versatile option for projects that need a lightweight, bendable, and visually inspectable pathway for water, air, or another compatible fluid.

Its 10-foot length can be cut for customized installations, while the clear construction makes it easier to inspect flow and identify buildup. The combination of a 1/2-inch inside diameter, 5/8-inch outside diameter, flexible 73A material, and stated 60 PSI working pressure makes it suitable for a variety of compatible low-pressure applications.

Aquariums, ponds, indoor water features, irrigation projects, workshops, laboratories, and general-purpose water-transfer systems are all potential uses. The key is to match the tubing to the project's actual fittings, pressure, temperature, fluid, and environmental conditions.

When those specifications align, flexible PVC tubing provides a straightforward and adaptable alternative to rigid piping for many everyday fluid-transfer projects.
